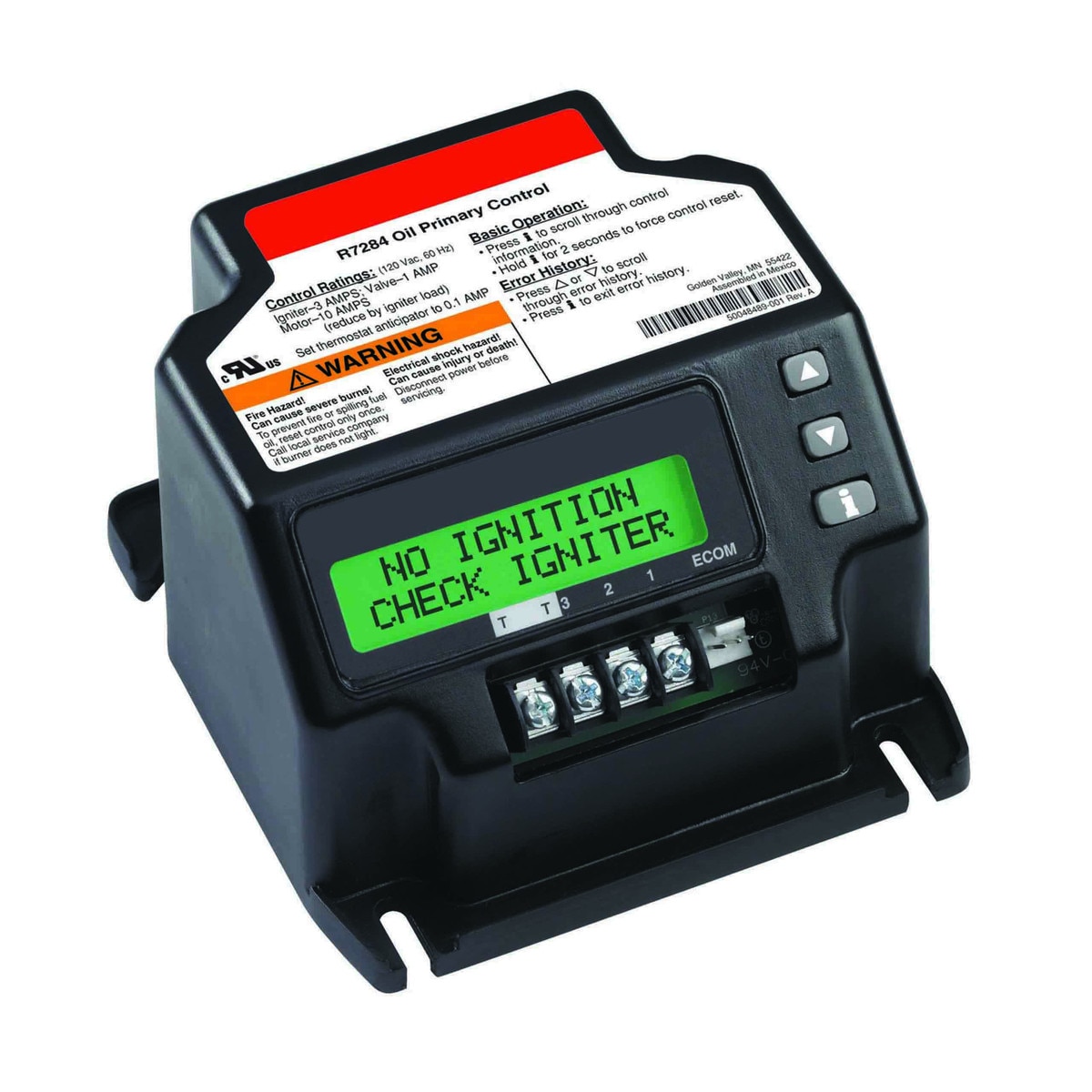

R7284U1004 UNIVERSAL OIL PRIMARY LCD PROGRAMABLE OIL PRIMARY
Details
Electronic Oil Primary Control
Type Digital, Universal
Flame Establishing Period 15, 30 or 45 Second
Pilot Type Interrupted/Intermittent
Voltage Rating 120/240 Volt AC
Operating Temperature -40 to 147 Deg F
Size 4-5/32 Inch Length x 4-11/32 Inch Width x 2-1/2 Inch Height
Application Residential Oil Fired Burner, Boiler, Forced Air Furnace, Water Heater
Approval UL, CUL
Current Rating 7.4 Amp at 120 Volt AC/3.7 Amp at 240 Volt AC (Full Load), 44.4 Amp at 120 Volt AC/22.2 Amp at 240 Volt AC (Locked Rotor)
Display Type (2) Line LCD
Mounting Type Junction Box on Main Burner
