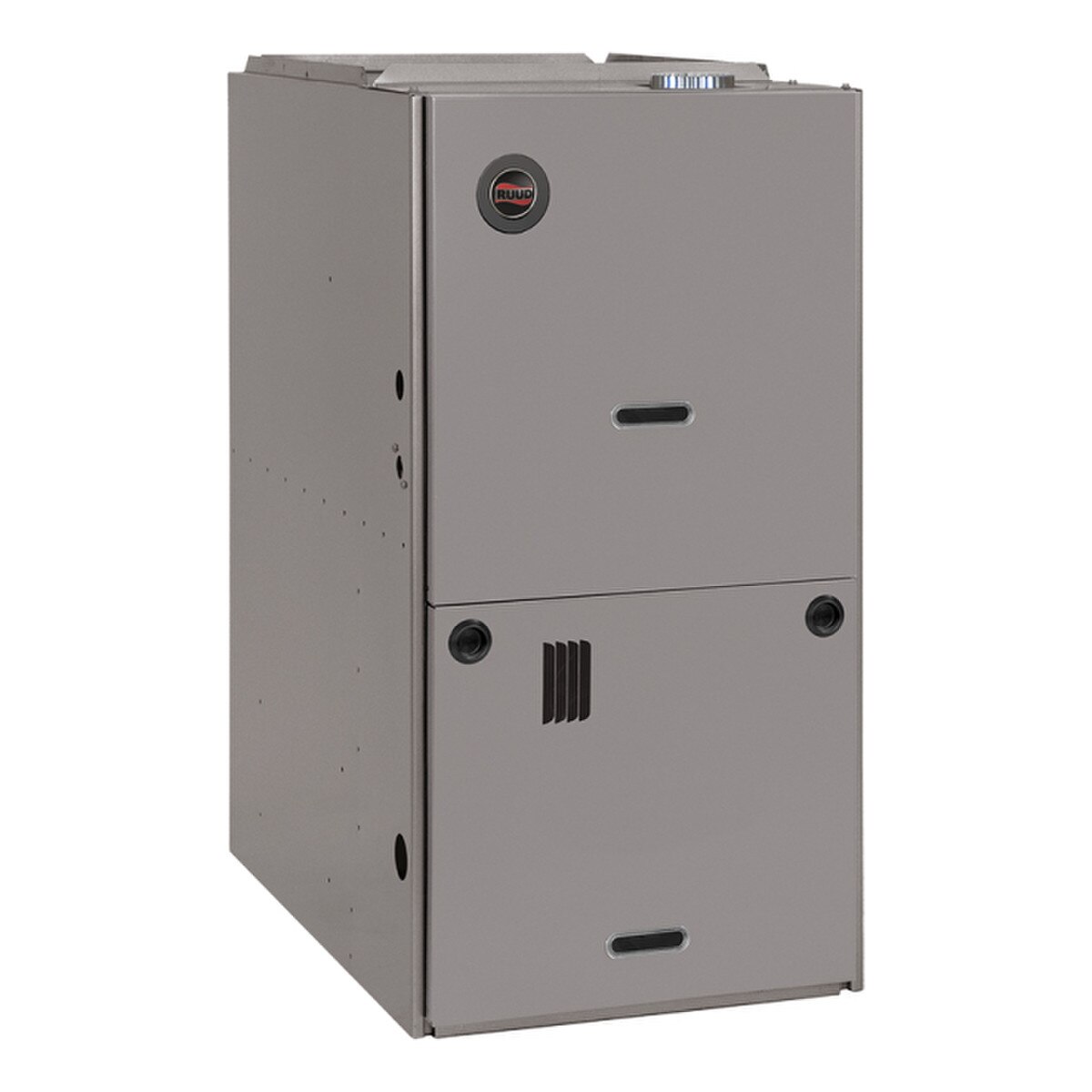

RUUD Endeavor R801T1005A21DZ 80% 100K BTU 1 Stage CT M1 Furnace With 21" Downflow
Features and Benefits
- PlusOne Diagnostics: Industry-first, 7-segment LED for quick & easy service
- PlusOne Ignition System: Proven Direct Spark Ignition (DSI) for reliability and longevity
- Low Profile, 34-inch Cabinet: Makes our furnaces ideal for space-constrained installations
- Hemmed Cabinet & Door Edges and Quarter-Turn Door Fasteners (Upflow/Horizontal only): Allows for safe, toolless access and serviceability
- Removable Heat Exchanger: Improves serviceability. Aluminized steel construction provides maximum corrosion resistance and thermal fatigue reliability
| Physical Data and Specifications : | |
|---|---|
| Constant Tq-UH Series | R801T1005A21DZ*NAS |
| Input-BTU/HT [kW] | 100,000 [29] |
| Heating Capacity BTU/Hr [kW] | 80,000 [23] |
| Heat Ext. Static Pressure [kPa] | .28 [.07] |
| Blower (D X W) [mm] | 11 x 10 [279 x 254] |
| Motor H.P. [W] Type | 1 [746] 5 Spd Constant Torque |
| Min. Circuit Ampacity | 12 |
| Min. Overload Protection Device | 15 |
| Max. Overload Protection Device | 20 |
| Heating Speed | Med-High |
| Cooling Speed | High |
| Cooling CFM @ Rating Point [L/s] | 2000 [944] |
| Max. E.S.P. (In. W.C.) [kPa] | 0.9 [.22] |
| Temperature Rise Range Deg F [Deg C] | 30-60 [16.6-33.3] |
| Max. Outlet Air Temp. Deg F [Deg C] | 190 [87.8] |
| Approx. Shipping Weight (Lbs.) [Kg] | 120 [54] |
| AFUE | 0.8 |
