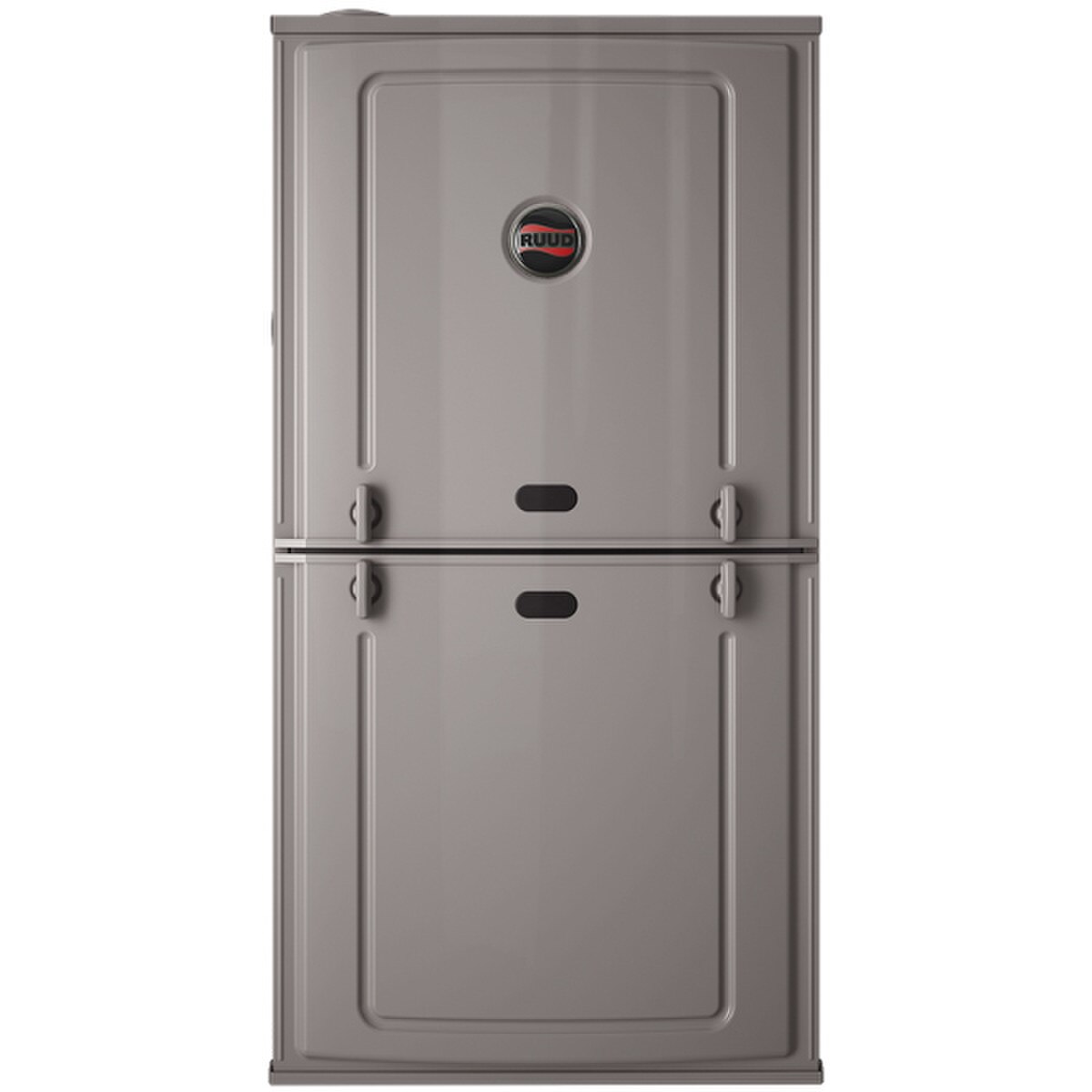

RUUD Endeavor R801V1005A21UH 80% 100K BTU 1 Stage ECM M1 Furnace with 21" Upflow
Features and Benefits
- PlusOne Diagnostics: With the Ruud Contractor & EcoNet Apps, built-in EcoNet & Bluetooth technology makes monitoring, troubleshooting and repairing the product easier than ever before
- Dip Switch Free Installation Commissioning via Bluetooth Technology: Seamless final install step without DIP switch configuration using the Ruud Contractor App
- PlusOne Ignition System: Proven Direct Spark Ignition (DSI) for reliability and longevity
- Constant CFM Motor: Truly variable speed technology allows for ultimate humidity control, quieter sound levels and year-round energy savings
- Quieter Operation1: A fully insulated blower cabinet, solid bottom and truly variable speed airflow technology makes this furnace one of the quieter options available
- EcoNet Enabled Furnace: The latest in sensor technology and the EcoNet monitoring system provides a new level of protection, control and energy savings
- Allows on-the-go control and receipt of system alerts by the homeowner via the EcoNet Smart Thermostat and Econet App2
| Physical Data and Specifications : | |
|---|---|
| MODEL NUMBERS R801V 1stg VS-CT UP/HZ SERIES | R801V 1005A21UH*CAP |
| Input-BTU/Hr [kW] | 100,000 [29] |
| Heating Capacity BTU/Hr [kW] | 80,000 [23] |
| Heat Ext. Static Pressure [kPa] | .28 [.07] |
| Blower (D x W) [mm] | 11 x 10 [279 x 254] |
| Motor H.P. [W] Type | 3/4 [560] VS-CT(ECM) |
| Min. Circuit Ampacity | 13 |
| Min. Overload Protection Device | 15 |
| Max. Overload Protection Device | 20 |
| Motor Full Load Amps | 8.8 |
| Heating CFM [L/s] | 1380 [651] |
| MAX Cooling CFM [L/s] | 1980 [934] |
| MIN Cooling CFM [L/s] | 500 [236] |
| Fan CFM [L/s] | 1000 [472] |
| Max. E.S.P. (In. W.C.) [kPa] | 1.0 [0.25] |
| Temperature Rise Range °F [°C] | 35-65 [19.4-36.1] |
| Approx. Shipping Weight (Lbs.) [kg] | 140 [64] |
| AFUE | 0.8 |
