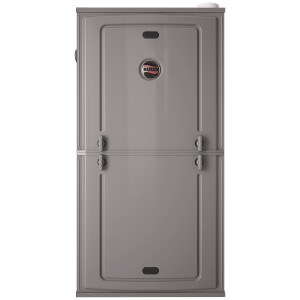

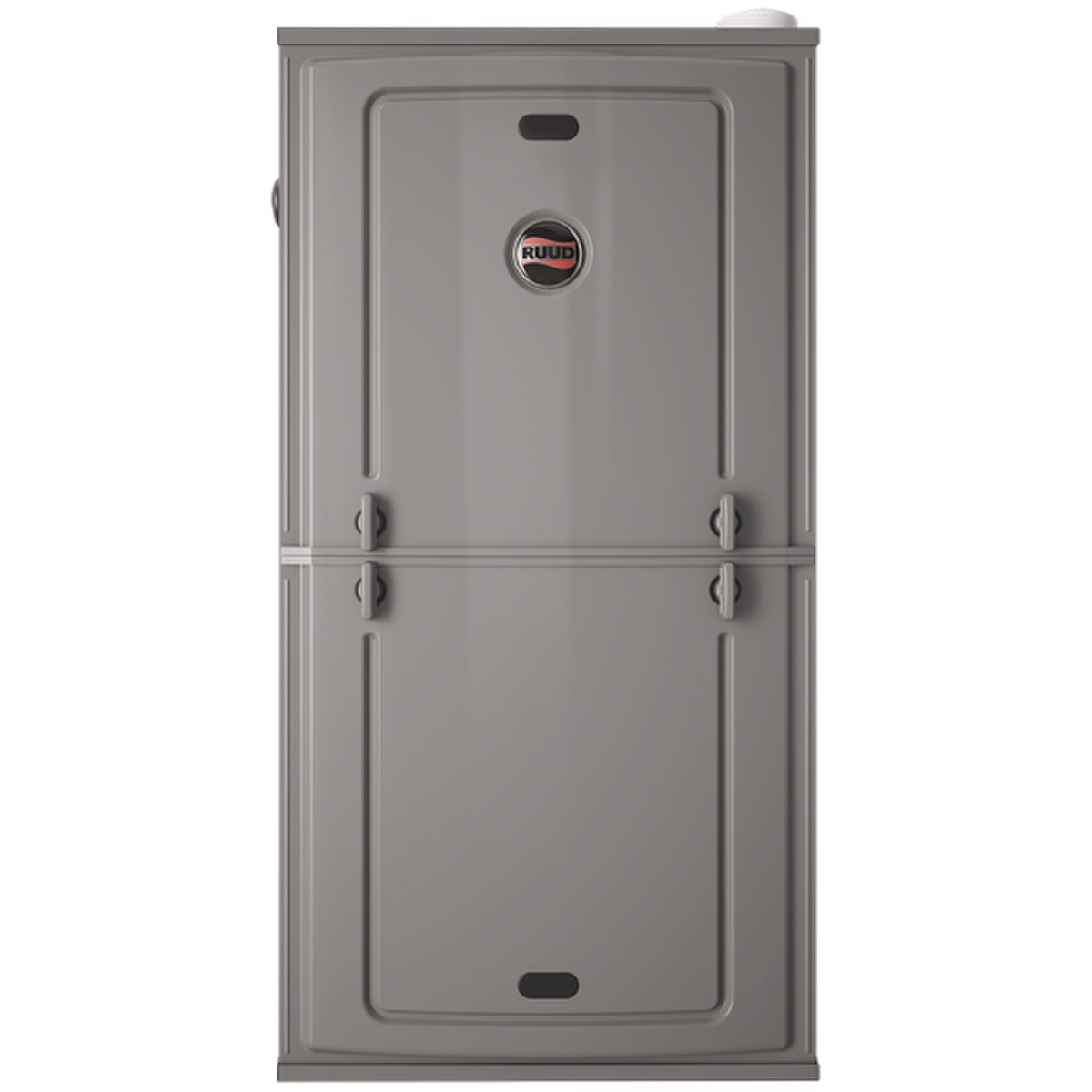

RUUD Endeavor R951T0703A17M4 70K 95% 1-STAGE CT MULTI POS FURNACE
Features and Benefits
- PlusOne Energy Efficiency: ENERGY STAR certified, featuring 95% AFUE across all model sizes
- PlusOne Diagnostics: Industry-first, 7-Segment LED for quick and easy service
- PlusOne Ignition System: Proven Direct Spart Ignition (DSI) for reliability and longevity
- PlusOne Water Management System: Ruud-exclusive patented block drain sensor that automatically shuts off the furnace when the drain is blocked and alerts the contractor via diagnostic code
| Physical Data and Specifications : | |
|---|---|
| MODEL NUMBERS | R951T 0703A17M4SCAP |
| HIGH FIRE INPUT BTU/HR [kW] | 70,000 [20.51] |
| HEATING CAPACITY BTU/HR [kW] | 66,500 [19.49] |
| HIGH ALTITUDE OUTPUT 10% DERATE [kW] | 59,850 [17.54] |
| BLOWER (D x W) [mm] | 11 x 8 [279 x 203] |
| MOTOR H.P. [W]–TYPE | 1/2 [373] 5 Spd Constant Torque |
| MIN. CIRCUIT AMPACITY | 10 |
| MIN. OVERLOAD PROTECTION DEVICE | 15 |
| MAX. OVERLOAD PROTECTION DEVICE | 15 |
| MINIMUM EXT. STATIC PRESSURE (IN. W.C.) [kPa] | .23 [.057] |
| MAXIMUM EXT. STATIC PRESSURE (IN. W.C.) [kPa] | .9 [0.224] |
| HEATING SPEED | MED |
| COOLING SPEED | HIGH |
| TEMPERATURE RISE HIGH FIRE RANGE IN DEGREES °F [°C] | 40 - 70 [22 - 39] |
| APPROX. SHIPPING WEIGHT (LBS.) [kg] | 132 [60] |
| AFUE | 0.95 |
