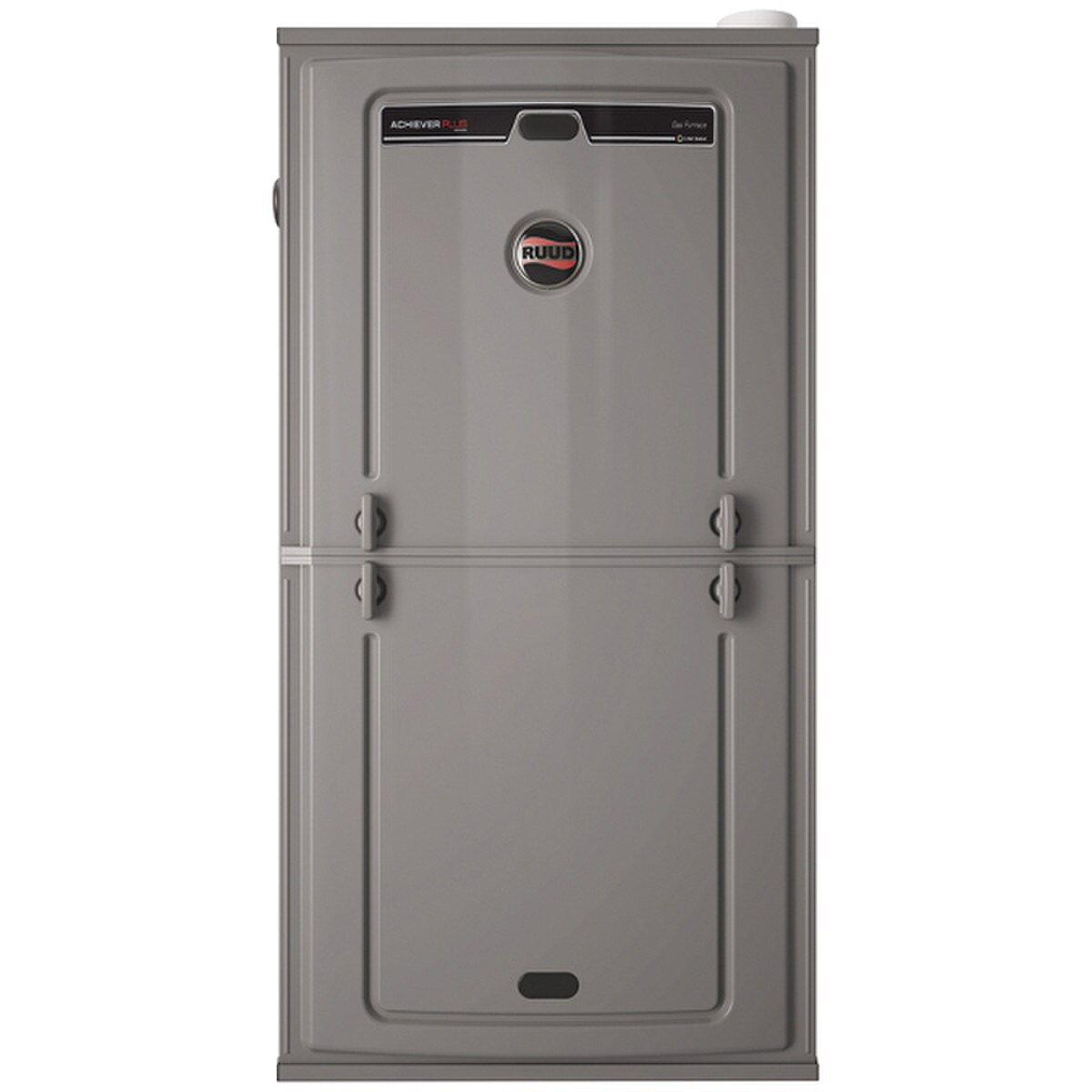

RUUD Endeavor R962V0703A17M4 70K 96% 2-STAGE ECM MULTI POS FURNACE
Features and Benefits
- PlusOne Energy Efficiency: ENERGY STAR certified, featuring 96% AFUE across all model sizes
- PlusOne Diagnostics: With the Ruud Contractor & EcoNet Apps, built-in EcoNet & Bluetooth technology makes monitoring, troubleshooting and repairing the product easier than ever before
- Dip Switch Free Installation Commissioning via Bluetooth Technology: Seamless final install step without DIP switch configuration using the Ruud Contractor App
- PlusOne Ignition System: Proven Direct Spark Ignition (DSI) for reliability and longevity
- PlusOne Water Management System: Exclusive patented block drain sensor that automatically shuts off the furnace when the drain is blocked and alerts the contractor via diagnostic code
- Two-Stage Heating: Furnace operation mainly stays at low capacity around 60-65%, but will switch to high capacity to deliver stable heat distribution
- Constant CFM Motor: Truly variable speed technology allows for ultimate humidity control, quieter sound levels and year-round energy savings
- Quieter Operation1: A fully insulated blower cabinet, solid bottom and truly variable speed airflow technology makes this furnace one of the quieter options available
- EcoNet Enabled Furnace: The latest in sensor technology and the EcoNet monitoring system provides a new level of protection, control and energy savings
- Allows on-the-go control and receipt of system alerts by the homeowner
| Physical Data and Specifications : | |
|---|---|
| MODEL NUMBERS | R962V0703 A17M4SCAP |
| HIGH FIRE INPUT BTU/HR [kW] | 70,000 [20.50] |
| LOW FIRE INPUT | 49,000 [14.36] |
| HEATING CAPACITY BTU/HR [kW] | 68,000 [19.93] |
| HIGH ALTITUDE OUTPUT 10% DERATE [kW] | 60,480 [17.72] |
| BLOWER (D x W) [mm] | 11 x 8 [279 x 203] |
| MOTOR H.P. [W]–TYPE | 1/2 [373] VS-CT(ECM) |
| MIN. CIRCUIT AMPACITY | 8 |
| MIN. OVERLOAD PROTECTION DEVICE | 15 |
| MAX. OVERLOAD PROTECTION DEVICE | 15 |
| MINIMUM EXT. STATIC PRESSURE (IN. W.C.) [kPa] | .23 [.057] |
| MAXIMUM EXT. STATIC PRESSURE (IN. W.C.) [kPa] | 0.9 [0.22] |
| HEATING HI CFM [L/s] | 1000 [472] |
| HEATING LO CFM [L/s] | 875 [413] |
| COOLING HI CFM [L/s] | 1125 [531] |
| COOLING LOCFM [L/s] | 731 [345] |
| TEMPERATURE RISE-HIGH FIRE RANGE IN DEGREES °F [°C] | 40 - 70 [22 - 39] |
| TEMPERATURE RISE-LOW FIRE RANGE IN DEGREES °F [°C] | 30 - 60 [17 - 33] |
| APPROX. SHIPPING WEIGHT | 132 [60] |
| AFUE | 0.96 |
