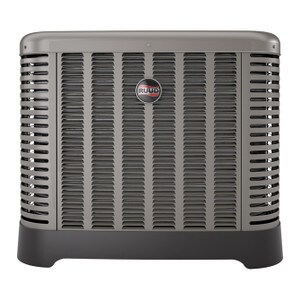

RUUD Endeavor RA13NZ24 2.0 TON 13.4 SEER2 AC CONDENSOR 1-STAGE 208V
Features and Benefits
- 7 mm Condenser Copper Coil: Requires less refrigerant allowing for a smaller and lighter footprint while enhancing reliability
- PlusOne Expanded Valve Space: 3 in. – 4 in. – 5 in. service valve space—provides a minimum working area of 27-square inches for easier access
- PlusOne Triple Service Access: 15 in. wide, industry leading corner service access, two fastener, removeable corner and individual louver panels - makes repairs easier and faster
| Physical Data and Specifications : | |
|---|---|
| Model No. | RA13NZ24 |
| Nominal Tonnage | 2 |
| Valve Connections | |
| Liquid Line O.D. – in. | 0.375 |
| Suction Line O.D. – in. | 0.75 |
| Refrigerant (R410A) furnished oz. | 78 |
| Compressor Type Scroll | |
| Outdoor Coil | |
| Net face area – Outer Coil | 13.3 |
| Net face area – Inner Coil | — |
| Tube diameter – in. | 0.276 |
| Number of rows | 1 |
| Fins per inch | 24 |
| Outdoor Fan | |
| Diameter – in. | 24 |
| Number of blades | 3 |
| Motor hp | 1/6 |
| CFM | 3439 |
| RPM | 825 |
| Watts | 197 |
| Shipping weight – lbs. | 175 |
| Operating weight – lbs. | 168 |
| Electrical Data | |
|---|---|
| Line Voltage Data (Volts-Phase-Hz) | 208/230-1-60 |
| Maximum overcurrent protection (amps) | 25 |
| Minimum circuit ampacity | 16 |
| Compressor | |
| Rated load amps | 12 |
| Locked rotor amps | 60 |
| Condenser Fan Motor | |
| Full load amps | 0.8 |
| Locked rotor amps | 1.5 |
| Performance Data @ AHRI Standard Conditions – Cooling | |
|---|---|
| Outdoor Unit | RA13NZ24AJ1 |
| Indoor Coil | RCFZ2417STAN |
| Total Capacity BTU/H [kW] | 22800 [6.7] |
| Net Sensible BTU/H [kW] | 17000 [5.0] |
| Net Latent BTU/H [kW] | 5,800 |
| SEER2 | 13.4 |
| EER2 | 9.0 |
| Indoor CFM [L/s] | 735 [346.9] |
