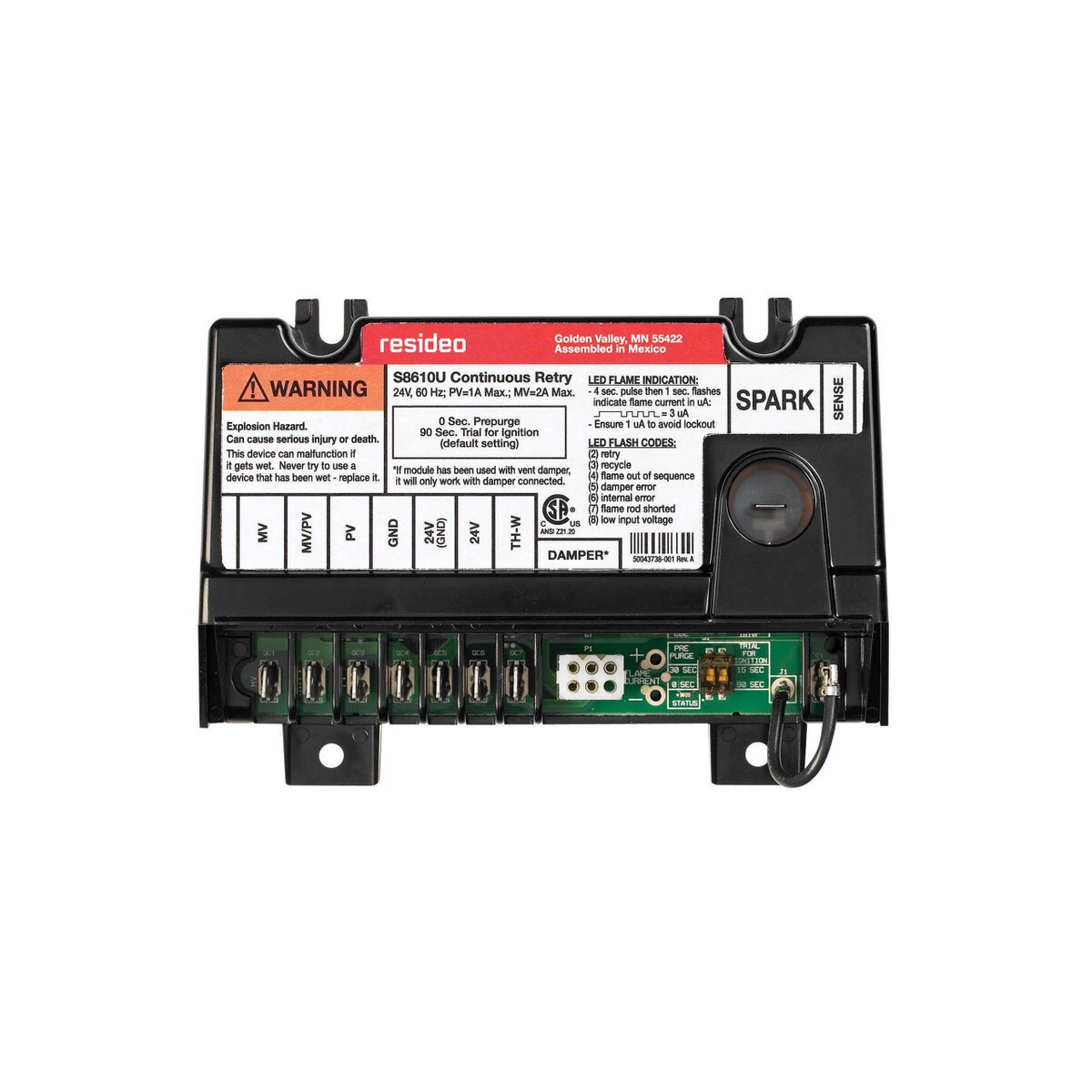

S8610U 3009 IGNITION MODUALE
Details
Ignition Pilot Module
Type Universal, Intermittent Pilot
Fuel Type Natural/Liquid Propane Gas
Flame Sense Type 1 or 2 Rod
Ignition Source Internal High Voltage Spark Generator
Ignition Sequence Continuous Retry
Ignition Trial Time 15/90 Second
Prepurge Time 30 Second
Flame Failure Response Time 2 Second
Valve Rating 1 Amp Pilot/2 Amp Main at 24 Volt AC 165/175 Deg F
Power Rating 24 Volt AC 60 Hertz
Size 5-7/16 Inch Width x 2-5/8 Inch Depth x 3-15/16 Inch Height
Temperature Rating -40 to 165 Deg F (Ambient)
Application Warm Air Furnace, Heating Appliance
Approval CSA
Includes Damper Connection with Automatic Vent Damper Plug, Cross Reference, Instructions and Accessory
