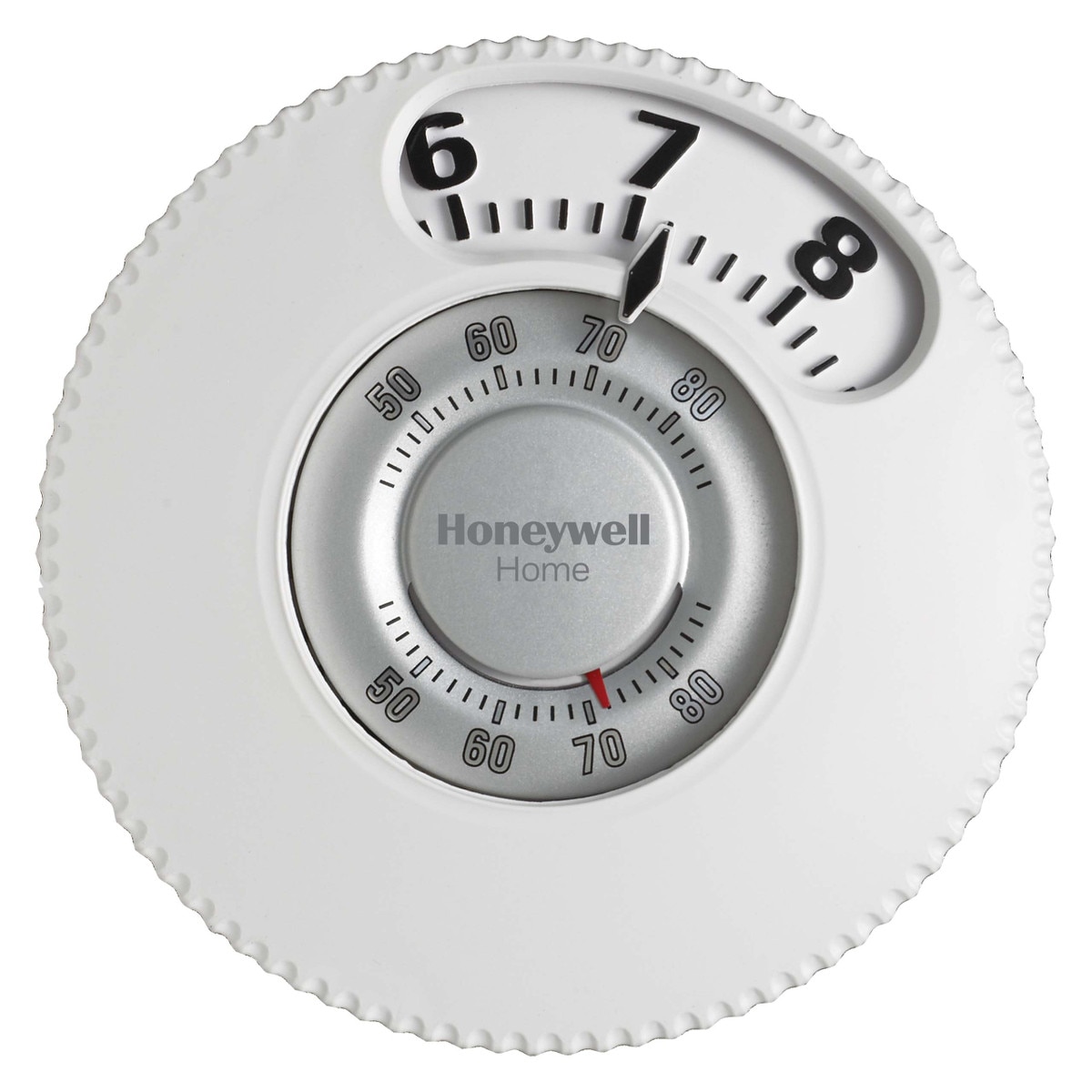

T87N 1026 EASY SEE ROUND THERMOSTAT
Details
Thermostat
Type Non-Programmable, 1-Heat/1-Cool Heat Pump/Conventional, Manual Changeover
Cover Type Classic Style Round
Color Premier White
Voltage Rating 20 to 30 Volt AC 50/60 Hertz
Current Rating 0.02 to 1 Amp Running (Cooling/Heating)
Switch Type Relay
Size 4 Inch Diameter x 1-3/4 Inch Depth
Power Method Battery Assisted Power Stealing
Sensor Element Thermistor
Switch Position Heat-Off-Cool (System), Auto-On (Fan)
Terminal Designation R, RC, W, Y, G, O, B
Type Non-Programmable, 1-Heat/1-Cool Heat Pump/Conventional, Manual Changeover
Cover Type Classic Style Round
Color Premier White
Voltage Rating 20 to 30 Volt AC 50/60 Hertz
Current Rating 0.02 to 1 Amp Running (Cooling/Heating)
Switch Type Relay
Size 4 Inch Diameter x 1-3/4 Inch Depth
Power Method Battery Assisted Power Stealing
Sensor Element Thermistor
Switch Position Heat-Off-Cool (System), Auto-On (Fan)
Terminal Designation R, RC, W, Y, G, O, B
