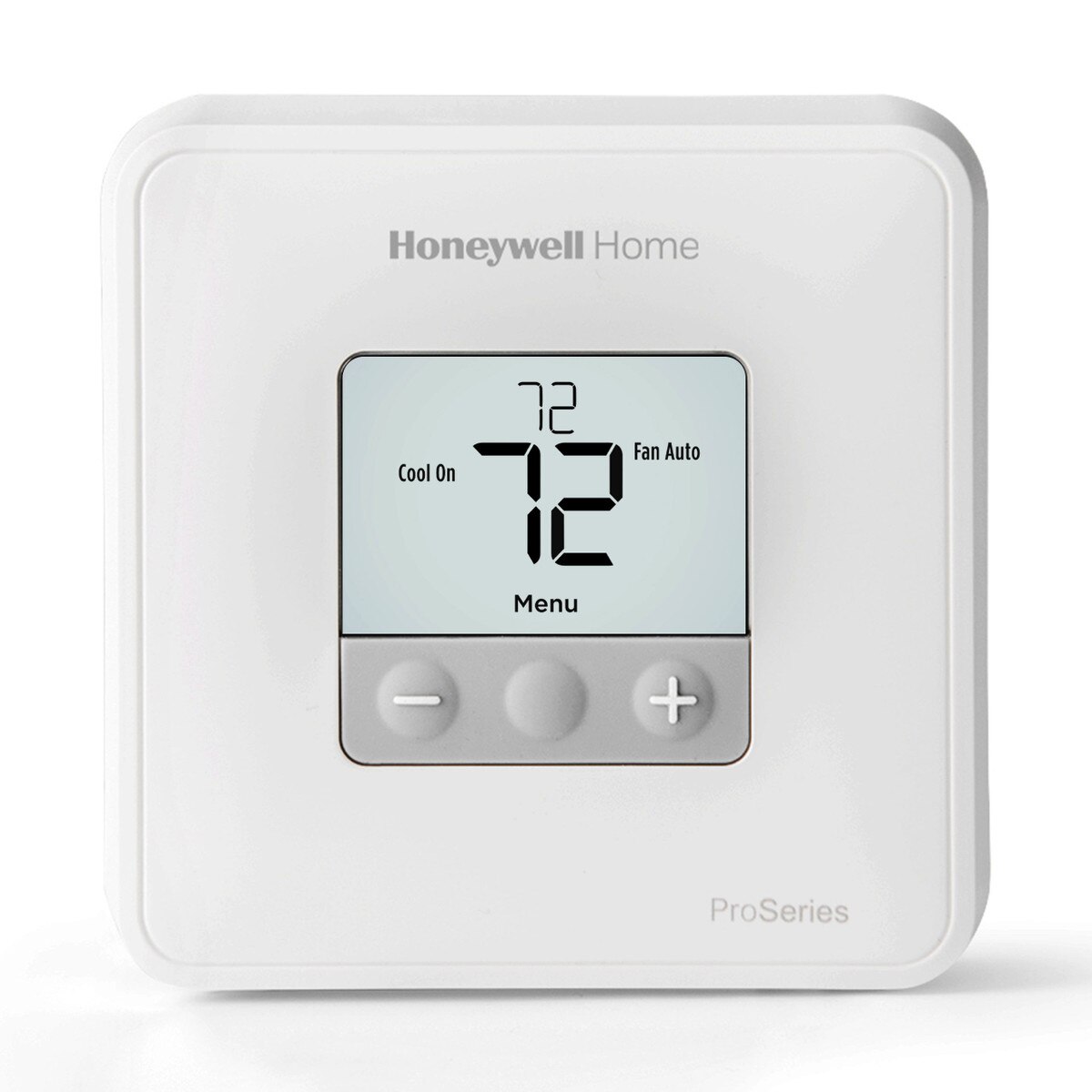

TH1110D2009 T1 PRO 1 HEAT /1 COOL NP NON-PROGRAMMABLE THERMOSTAT
Details
Thermostat
Type Non-Programmable, 1-Heat/1-Cool Heat Pump/Conventional, Manual Changeover
Color White
Voltage Rating 20 to 30 Volt AC 50/60 Hertz
Current Rating 0.02 to 1 Amp (Cooling/Heating), 0.02 to 0.5 Amp (Fan)
Switch Type Relay
Size 4-1/16 Inch Length x 4-1/16 Inch Width x 1-3/32 Inch Depth
Display Size 2.37 Square Inch Small, Soft Key Control
Humidity Rating 5 to 90 Percent RH (Non-Condensing)
Power Method Battery/Hardwired
Terminal Designation R, RC, C, W, O/B, Y, and G
Switch Position Heat-Off/Cool-Off (System), Auto-On (Fan)
Setting Temperature Rating 32 to 90 Deg F (Heat), 50 to 99 Deg F (Cool)

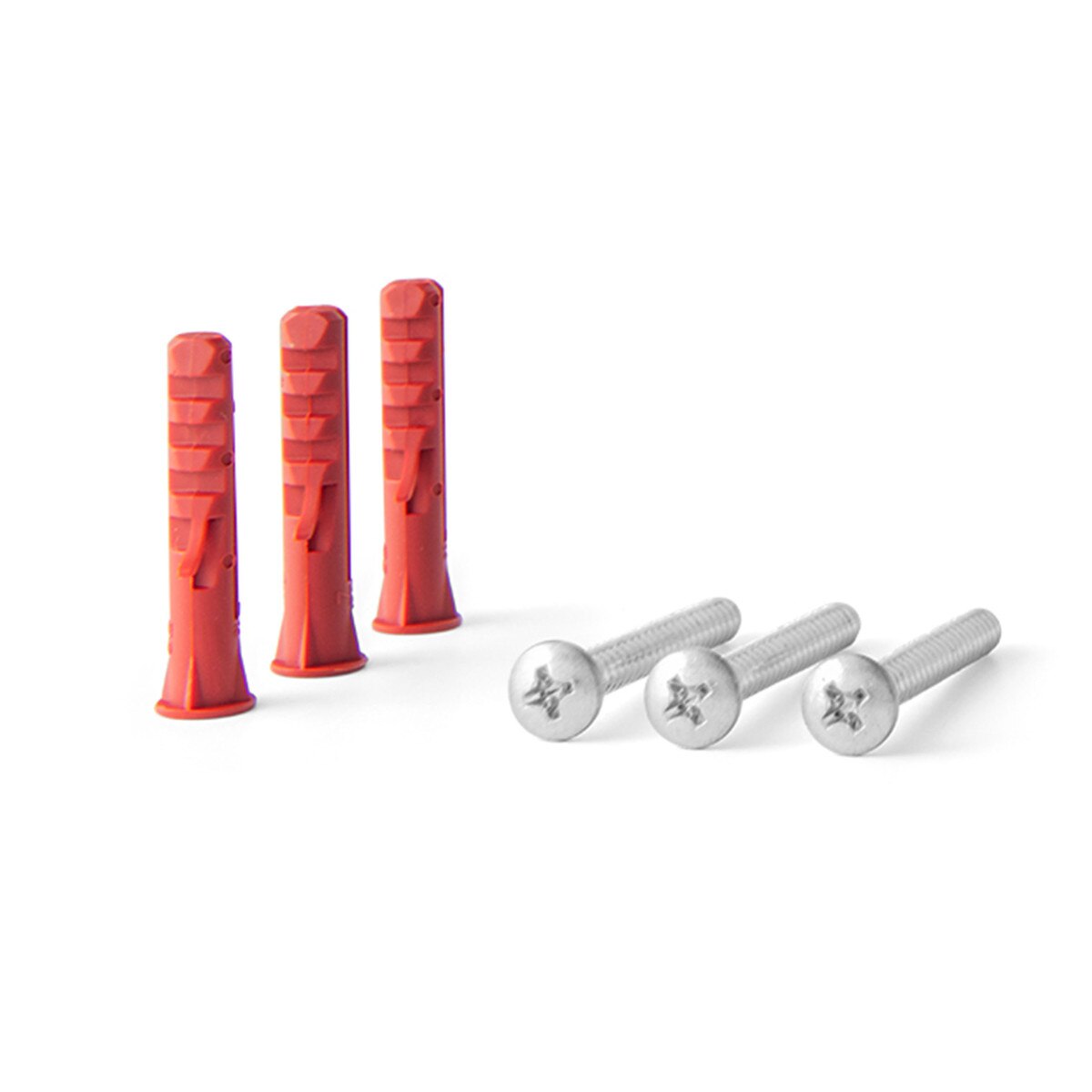

Includes UWP Mounting System, Installation (J-Box) Adapter
Application 24 Volt AC System, Gas, Oil, Electric, Warm Air, Hot water Coil, Gas Steam System
