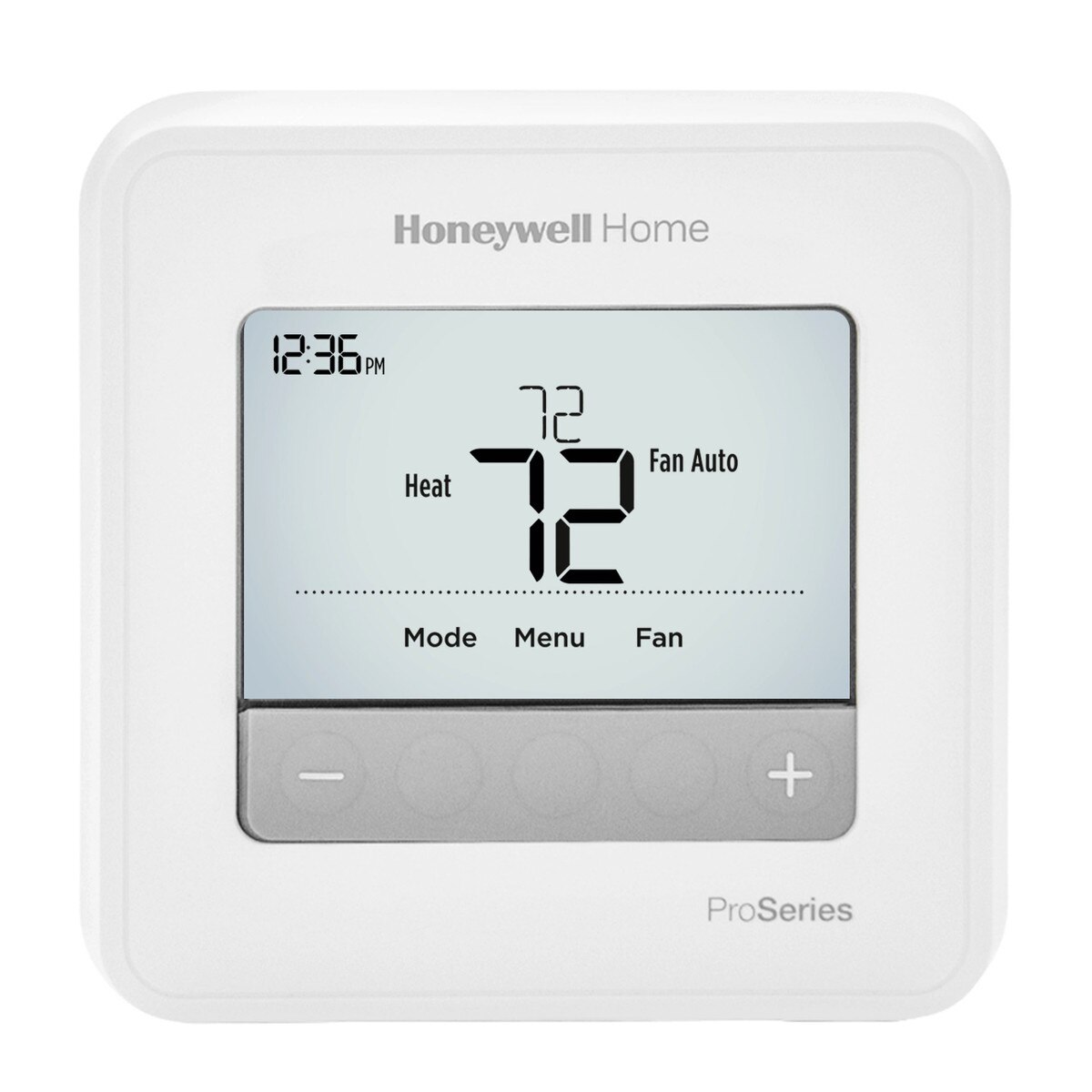

TH4110U2005 T4 PRO 1 HEAT/1 COOL THERMOSTAT

(0)No Reviews yet

Details

Thermostat
Type 1-Heat/1-Cool Heat Pump/Conventional, 7/5-1-1/5-2 Day Programmable/Non-Programmable, Auto/Manual Changeover
Color White
Voltage Rating 20 to 30 Volt AC at 50/60 Hertz
Current Rating 0.02 to 1 Amp (Cooling/Heating), 0.02 to 0.5 Amp (Fan)
Switch Type Relay
Temperature Rating 37 to 102 Deg F
Size 4-1/16 Inch Width x 1-3/32 Inch Depth x 4-1/16 Inch Height
Switch Position Heat-Off-Cool-Auto (System), Auto-On (Fan)
Display Type 3.93 Square Inch Medium, Softkey Control
Setting Temperature Rating 40 to 90 Deg F (Heating), 50 to 99 Deg F (Cooling)
Humidity Rating 5 to 90 Percent RH (Non-Condensing)
Differential Temperature Rating +/-1 Deg F
Accuracy 0.5 Deg C
Power Method Battery/Hardwired
Temperature Control Selection Mode Ambient Air

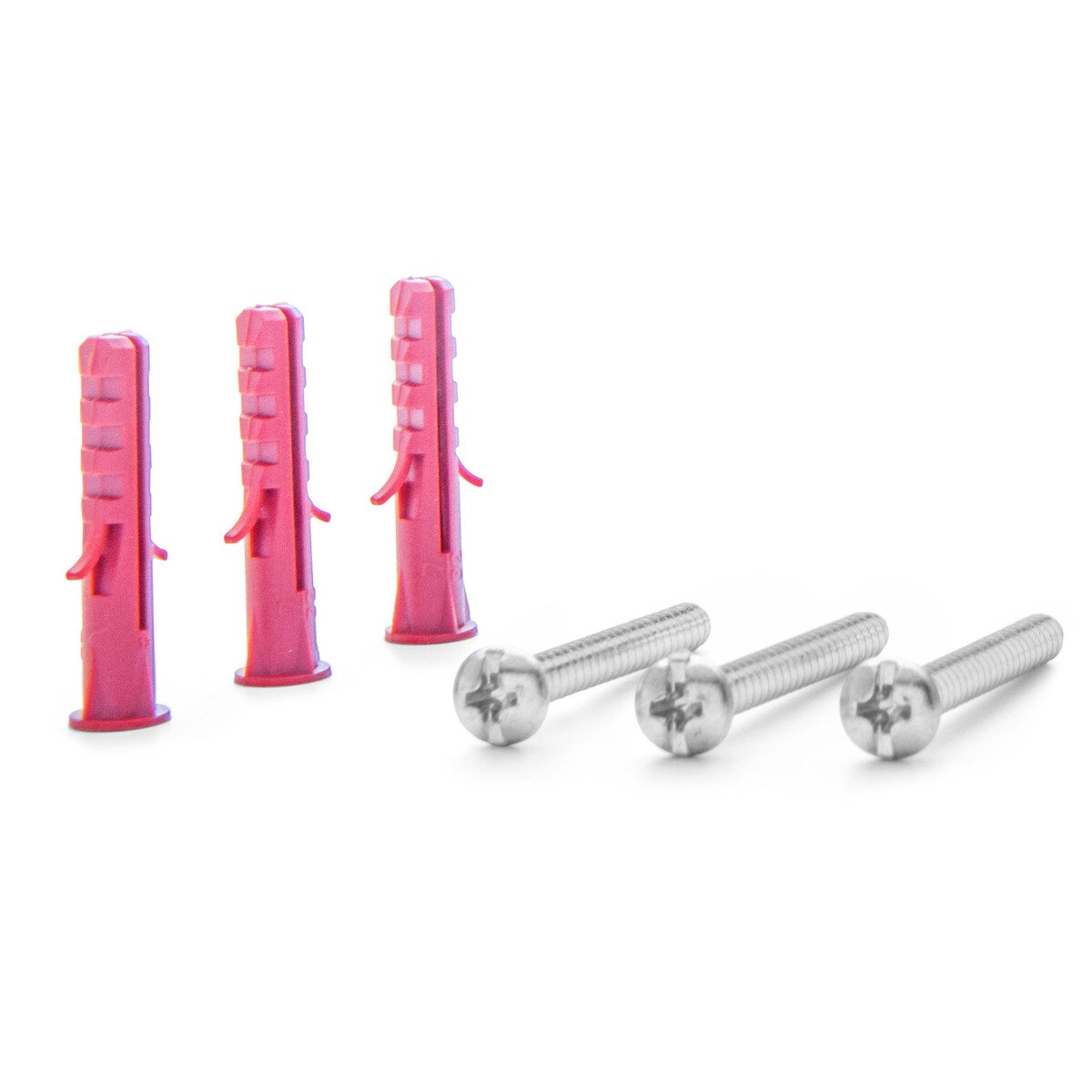

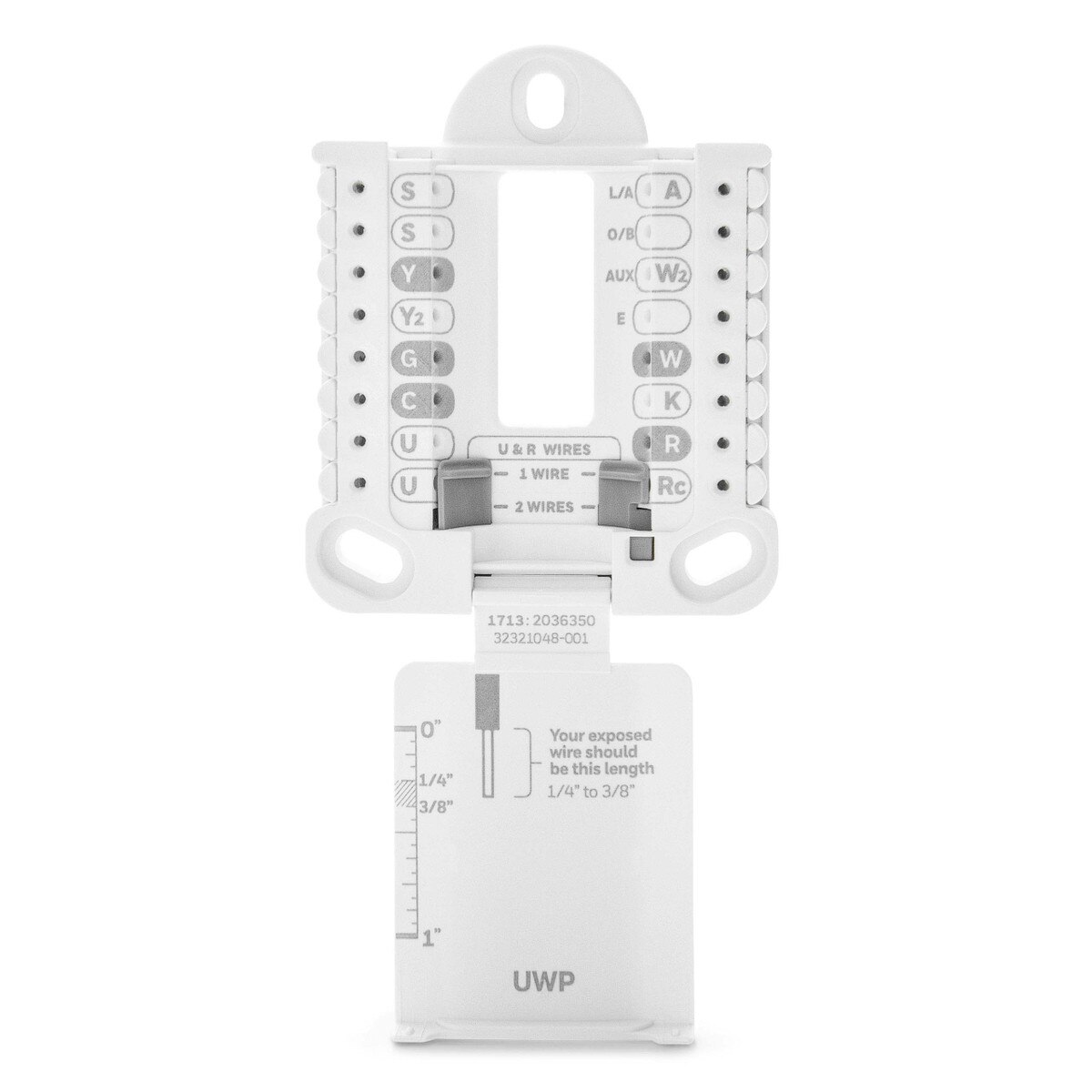

Includes UWP Mounting System, J-Box Adapter Plate
Application Standard Efficient Gas Forced Air, High Efficacy Gas Forced Air, Oil Forced Air, Electric Forced Air, Hot Water Fan Coil, Geothermal Heat Pump, Air to Air Heat
