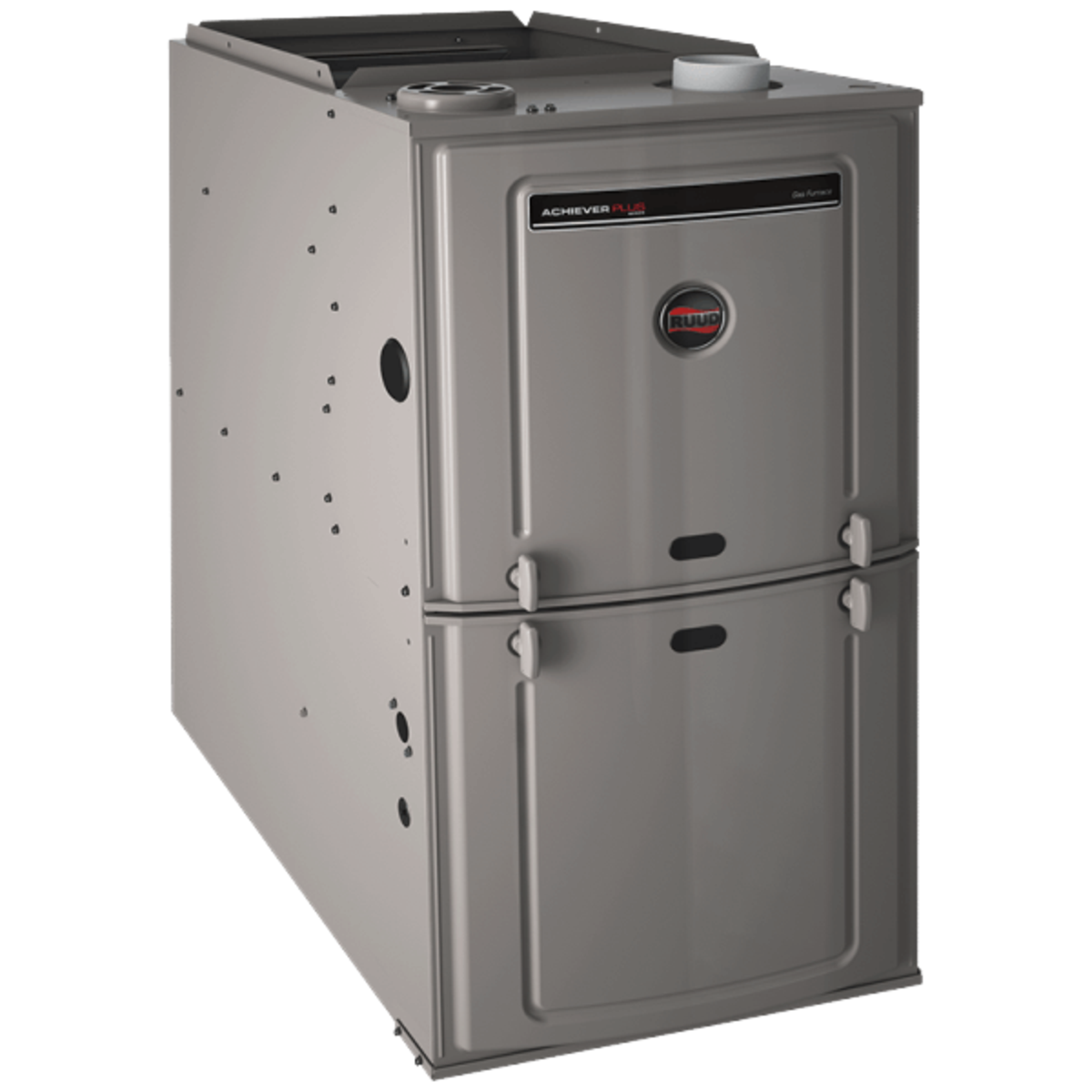

R801CA-050-3 80% BTU 14" WIDE UPFLOW / HORIZONTAL 1 STAGE CONSTANT TORQUE FURNACE
Features & Benefits:
Specifications:
- 80% residential Gas Furnace CSA certified
- 3 way multi-poise design UF / HZ
- PlusOne Diagnostics — 7 Segment LED all units
- PlusOne Ignition System – DSI for reliability and longevity
- The heat exchanger is removable for improved serviceability. Aluminized steel
- construction provides maximum corrosion resistance and thermal fatigue reliability.
- Solid doors provide quiet operation
- Low profile 34" cabinet ideal for space-constrained installations
- Blower shelf design – serviceable in all furnace orientations
- Hemmed edges on cabinets and doors
- 1/4 turn door knobs for toolless access
- The Integrated Control board features dip switches for easy system setup
- QR code for quick access to product information from your smartphone or tablet
- Constant Torque electrically commutated motor
Specifications:
- Three-way multi poise design
- Constant Torque ECM Motor
- Ruud-Exclusive PlusOne Ignition System
- Industry-First PlusOne Diagnostics
| Physical Data and Specifications : | |
|---|---|
| MODEL NUMBERS R801C SERIES | R801CA050314M*A |
| Input-BTU/Hr [kW] | 50,000 [15] |
| Heating Capacity BTU/Hr [kW] | 40,000 [12] |
| Heat Ext. Static Pressure [kPa] | .18 [.05] |
| Blower (D x W) [mm] | 11 x 6 [279 x 152] |
| Motor H.P.–Speed– PSC Type [W] | 1/2-5 Spd Constant Torque [373] |
| Min. Circuit Ampacity | 8 |
| Min. Overload Protection Device | 15 |
| Max. Overload Protection Device | 15 |
| Heating Speed | Med-Low |
| Cooling Speed | High |
| Cooling CFM @ Rating Point [L/s] | 1305 [616] |
| Max. E.S.P. (In. W.C.) [kPa] | 0.9 [.22] |
| Temperature Rise Range °F [°C] | 25-55 [13.9-30.6] |
| Max. Outlet Air Temp. °F [°C] | 155 [68.3] |
| Approx. Shipping Weight (Lbs.) [kg] | 110 [50] |
| AFUE | 80.0% |
