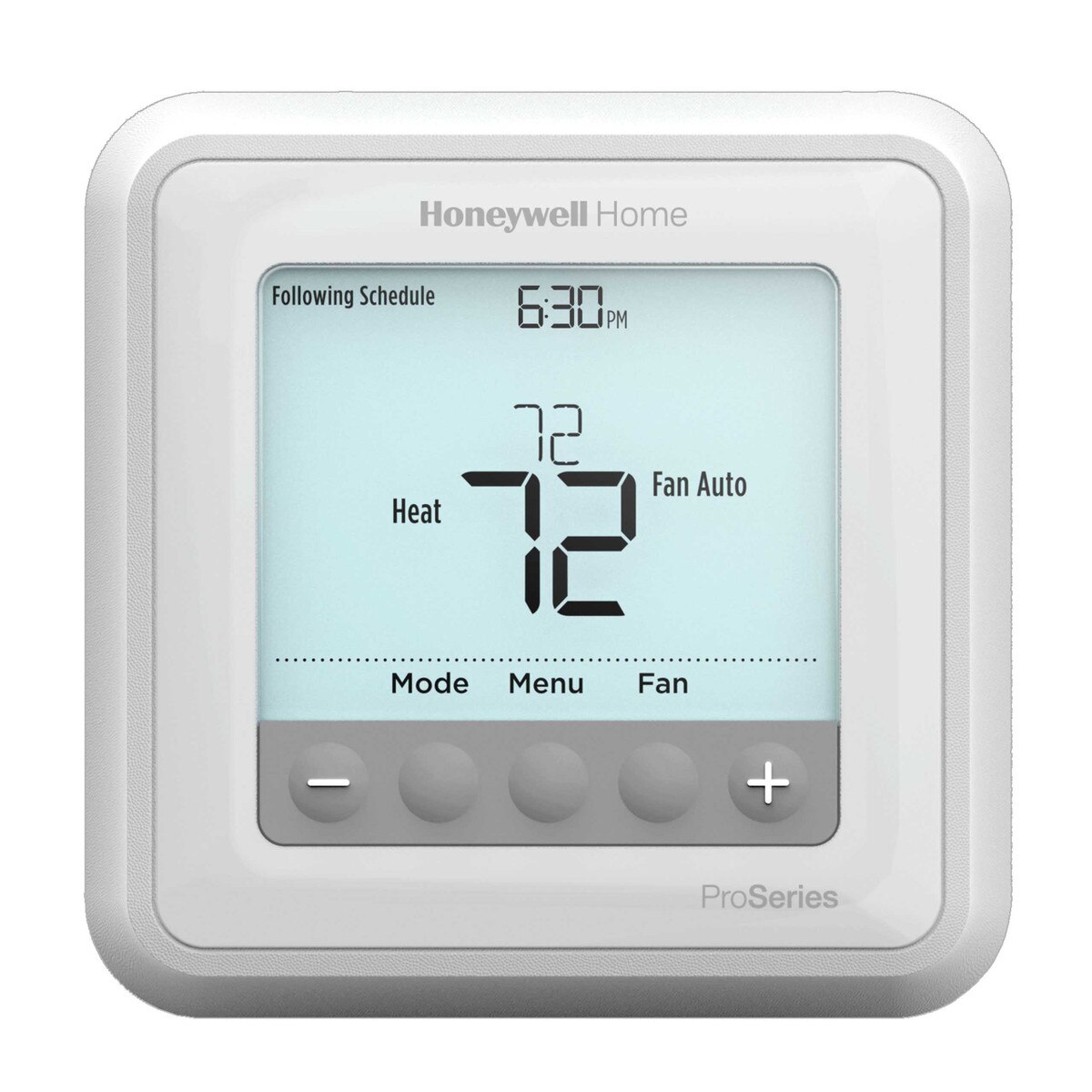

TH6210U2001 T6 PRO 2 HEAT/1 COOL THERMOSTAT
Details
Thermostat
Type 5-1-1/5-2/7 Day Programmable/Non-Programmable, 2-Heat/1-Cool (Heat Pump), 1-Heat/1-Cool (Conventional), Auto/Manual Changeover
Color White
Voltage Rating 20 to 30 Volt AC
Current Rating 0.02 to 1 Amp (Heat), 0.02 to 0.05 Amp (Fan)
Switch Type Relay
Temperature Rating 32 to 102 Deg F, 40 to 90 Deg F (Heat Setting), 50 to 99 Deg F (Cool Setting)
Size 4-1/16 Inch Length x 4-1/16 Inch Width x 1-3/32 Inch Depth
Display Size 5.44 Square Inch
Ambient Temperature 32 to 120 Deg F
Setting Temperature Rating 40 to 90 Deg F (Heat), 50 to 99 Deg F (Cool)
Ambient Temperature 32 to 120 Deg F
Setting Temperature Rating 40 to 90 Deg F (Heat), 50 to 99 Deg F (Cool)
Application Standard Efficient Gas Forced Air, High Efficacy Gas Forced Air, Oil Forced Air, Electric Forced Air, Hot Water Fan Coil, Geothermal Heat Pump, Air to Air Heat
Type 5-1-1/5-2/7 Day Programmable/Non-Programmable, 2-Heat/1-Cool (Heat Pump), 1-Heat/1-Cool (Conventional), Auto/Manual Changeover
Color White
Voltage Rating 20 to 30 Volt AC
Current Rating 0.02 to 1 Amp (Heat), 0.02 to 0.05 Amp (Fan)
Switch Type Relay
Temperature Rating 32 to 102 Deg F, 40 to 90 Deg F (Heat Setting), 50 to 99 Deg F (Cool Setting)
Size 4-1/16 Inch Length x 4-1/16 Inch Width x 1-3/32 Inch Depth
Display Size 5.44 Square Inch
Ambient Temperature 32 to 120 Deg F
Setting Temperature Rating 40 to 90 Deg F (Heat), 50 to 99 Deg F (Cool)
Ambient Temperature 32 to 120 Deg F
Setting Temperature Rating 40 to 90 Deg F (Heat), 50 to 99 Deg F (Cool)
Application Standard Efficient Gas Forced Air, High Efficacy Gas Forced Air, Oil Forced Air, Electric Forced Air, Hot Water Fan Coil, Geothermal Heat Pump, Air to Air Heat
