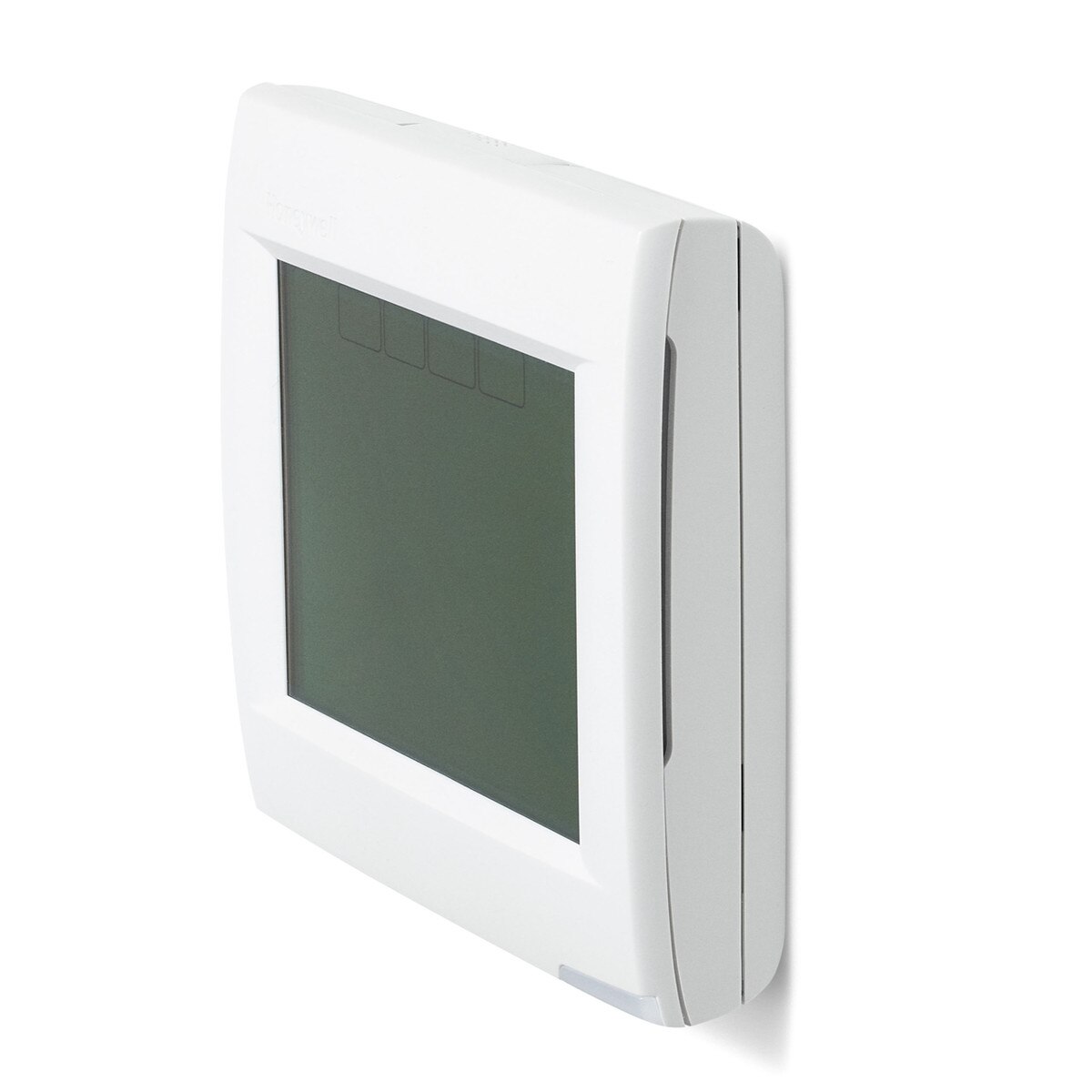

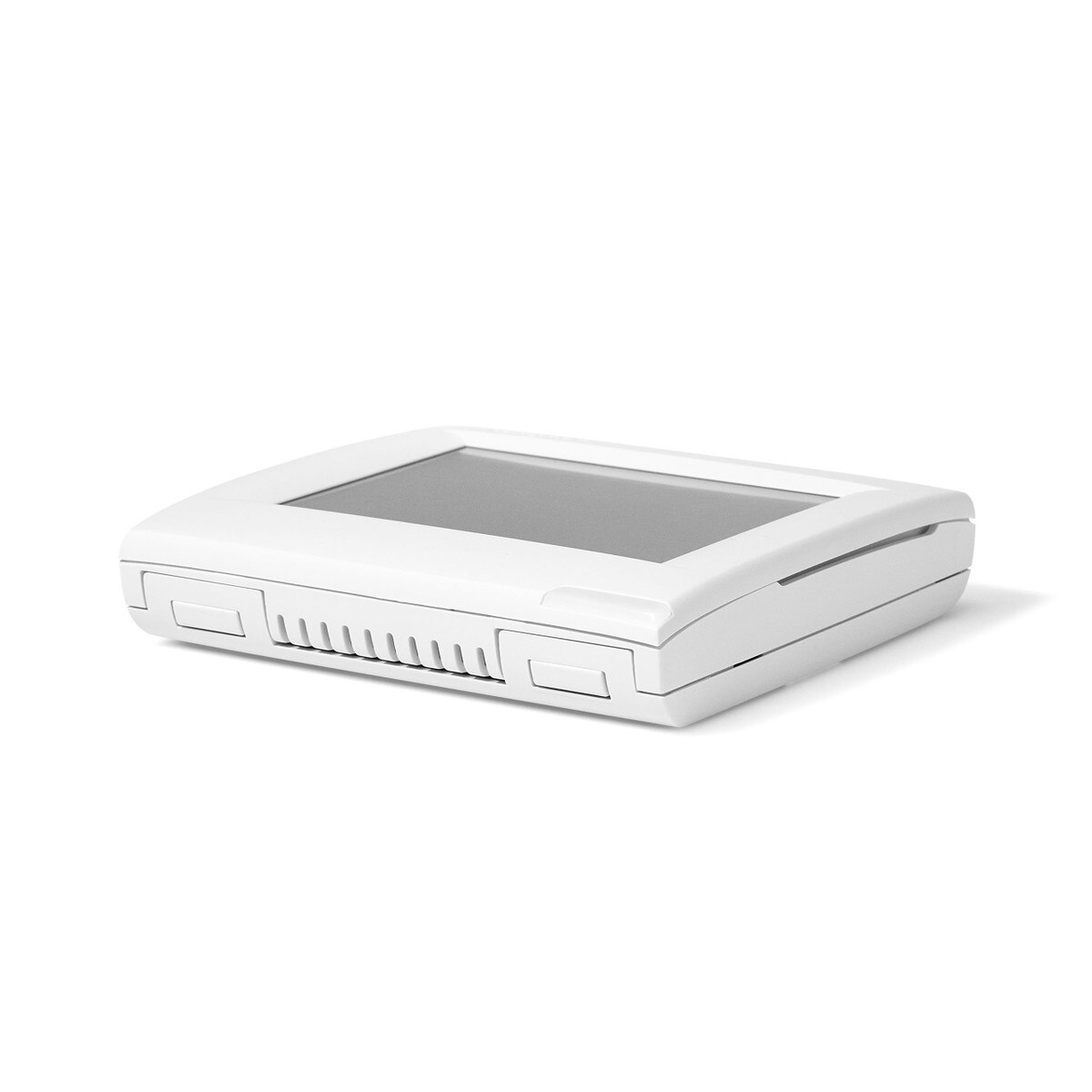

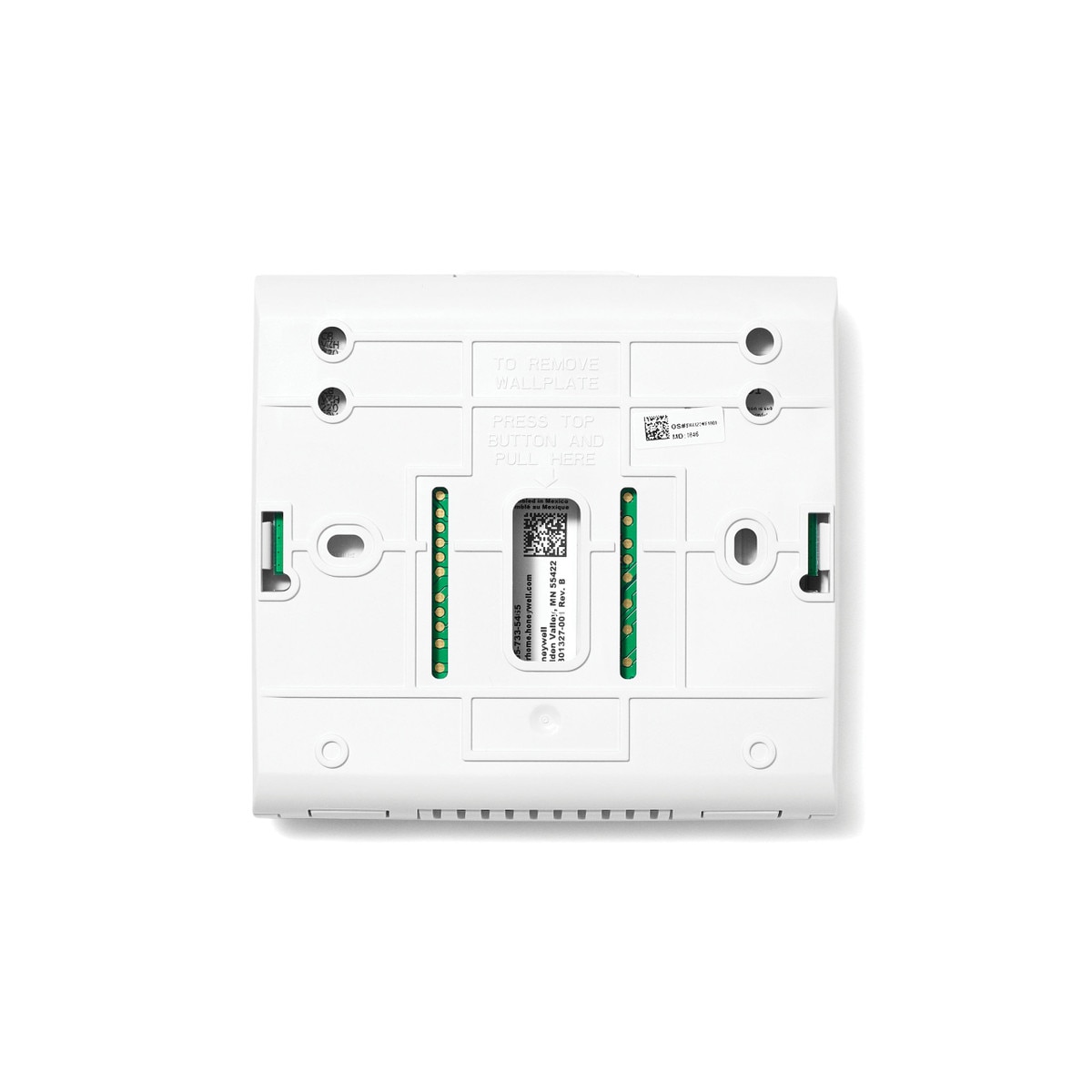

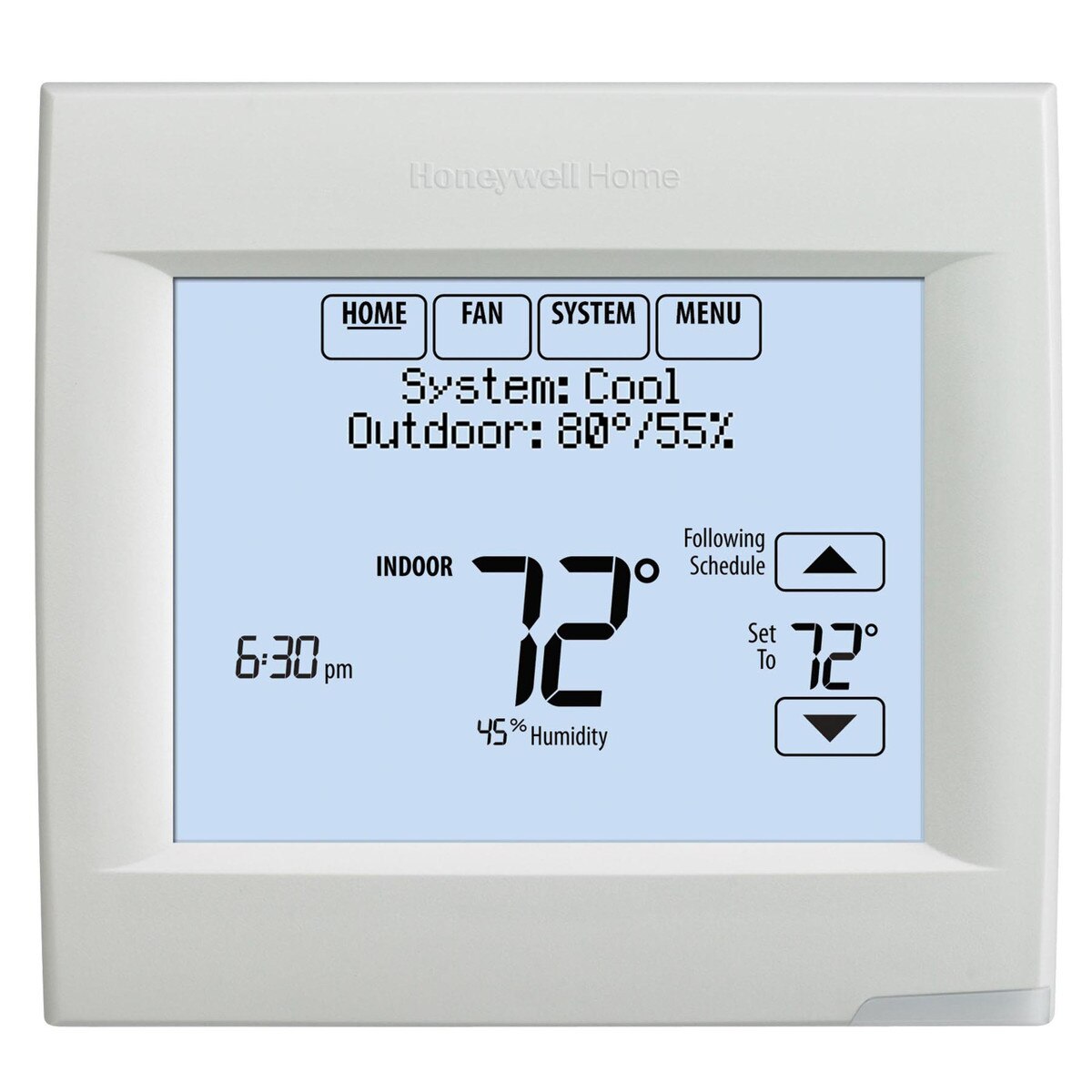

TH8320R1003 VISIONPRO 8000 WITH REDLINK TECHNOLOGY.THERMOSTAT

(0)No Reviews yet

Details

Thermostat
Type 7 Day Programmable/Non-Programmable, Wireless, 3-Heat/2-Cool (Heat Pump), 2-Heat/2-Cool (Conventional), Auto/Manual Changeover
Color Arctic White
Voltage Rating 18 to 30 Volt AC/750 Millivolt 50/60 Hertz
Temperature Rating 32 to 120 Deg F, 40 to 90 Deg F (Heat Setting), 50 to 99 Deg F (Cool Setting)
Size 4-15/16 Inch Width x 1-1/8 Inch Depth x 4-5/8 Inch Height
Display Size 10 Square Inch
Power Method Battery/Hardwired
Terminal Type Screw
Switch Positions Heat-Off-Cool-Auto (System), Auto-On-Circ (Fan)
Terminal Designation R, Rc, C, W (O/B), W2 (Aux/E), Y, Y2, G, A-L/A, K, S1
Ambient Temperature 32 to 120 Deg F
Setting Temperature Rating 40 to 90 Deg F (Heat), 50 to 99 Deg F (Cool)
Application Commercial, Residential
